อุปกรณ์ที่ประกอบด้วยตลับลูกปืน ซึ่งโดยทั่วไปจะเป็นตลับลูกปืนเม็ดกลมซึ่งอยู่ในบล็อกสำหรับติดตั้ง ใช้เพื่อรองรับและนำทางเพลาที่กำลังหมุน และลดแรงเสียดทานระหว่างเพลาและตัวเรือน

ตลับลูกปืนตุ๊กตามีให้เลือกหลายขนาดและประเภท สิ่งสำคัญคือต้องเลือกตลับลูกปืนตุ๊กตาที่เหมาะสมกับการใช้งาน
พิจารณาปัจจัยต่อไปนี้

   ขนาดเพลา
   ประเภทของภาระ
   ความเร็วในการทำงาน
   อุณหภูมิในการทำงาน
   สภาพแวดล้อม

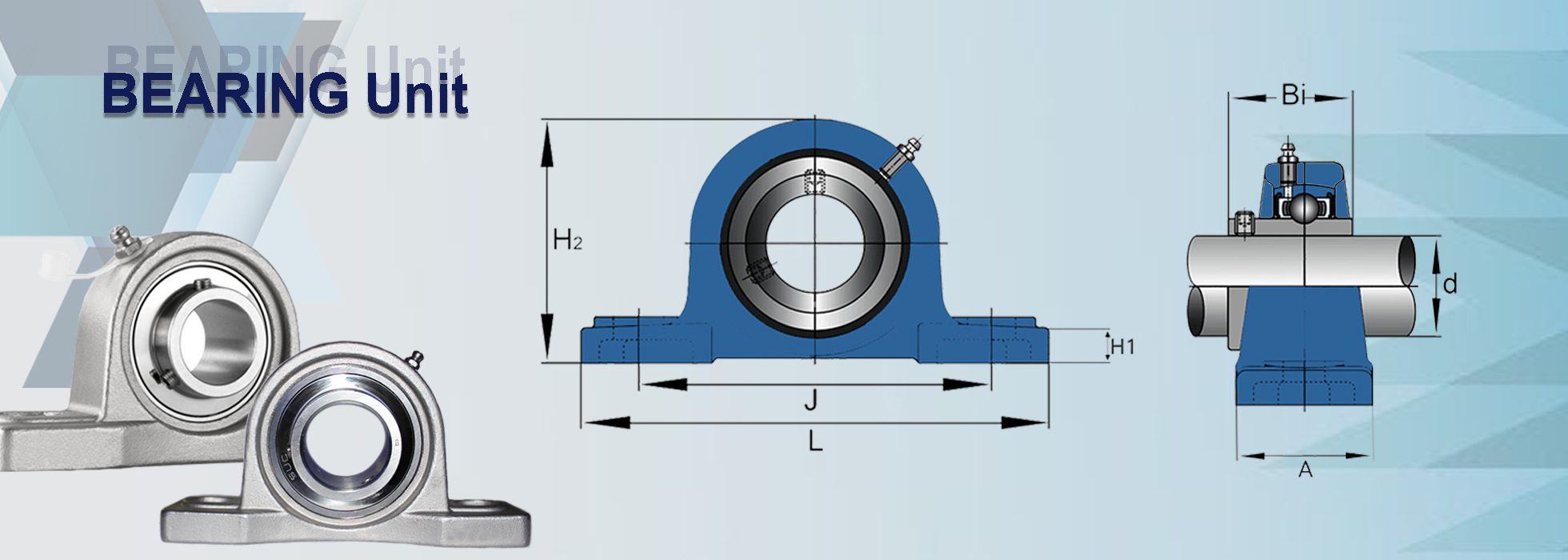

Unit No.	Dimensions (mm)
Unit No.	d(in)	d(mm.)	L	J	A	H1	H2	Bi	Bolt Size	Brand
SSUCP201 SSUCP201-8	1/2	12	127	95	38	14	61	31	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCP202 SSUCP202-9 SSUCP203-10	9/16 5/8	15	127	95	38	14	61	31	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCP203 SSUCP203-11	11-16	17	127	95	38	14	61	31	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCP204 SSUCP204-12	3/4	20	127	95	38	14	64	31	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCP205 SSUCP205-14 SSUCP205-15 SSUCP205-16	7/8 15/16 1	25	140	105	38	15	71	34.1	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCP206 SSUCP206-17 SSUCP206-18 SSUCP206-19 SSUCP206-20	1-1/16 1-1/6 1-3/16 1-1/4	30	160	121	44	16	82	38.1	M14	LDK	UBC	ECONOMY SOLUTIONS
SSUCP207 SSUC207-20 SSUCP207-21 SSUCP207-22 SSUCP207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	167	126	48	17	92	42.9	M14	LDK	UBC	ECONOMY SOLUTIONS
SSUCP208 SSUCP208-24 SSUCP208-25	1-1/2 1-9/16	40	180	137	52	18	99	49.2	M14	LDK	UBC	ECONOMY SOLUTIONS
SSUCP209 SSUCP209-26 SSUCP209-27 SSUCP209-28	1-5/8 1-11/16 1-3/4	45	190	146	54	20	106	49.2	M14	LDK	UBC	ECONOMY SOLUTIONS
SSUCP210 SSUCP210-30 SSUCP210-31 SSUCP210-32	1-7/8 1-15/16 2	50	206	159	60	21	114	51.6	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCP211 SSUCP211-32 SSUCP211-34 SSUCP211-35	2 2-1/8 2-3/16	55	217	172	60	23	125	55.6	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCP212 SSUCP212-36 SSUCP212-38 SSUCP212-39	2-1/4 2-3/8 2-7/16	60	238	186	70	24	137	65.1	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCP213 SSUCP213-40	2-1/2	65	262	203	70	26	149	65.1	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCP214 SSUCP214-44	2-3/4	70	266	210	72	27	155	74.6	M20	LDK	UBC	ECONOMY SOLUTIONS
UCP215 SSUCP215-47 SSUCP215-48	2-15/16	75	274	217	74	28	162	77.8	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCP216	-	80	292	232	78	30	174	82.6	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCP217 SSUCP217-52	3-1/4	85	310	247	83	32	186	85.7	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCP218 SSUCP218-56	3-1/2	90	326	262	88	33	198	96	M22	LDK	UBC	ECONOMY SOLUTIONS
SSUCP220	-	100	380	305	95	40	225	108	M24	LDK	UBC	ECONOMY SOLUTIONS

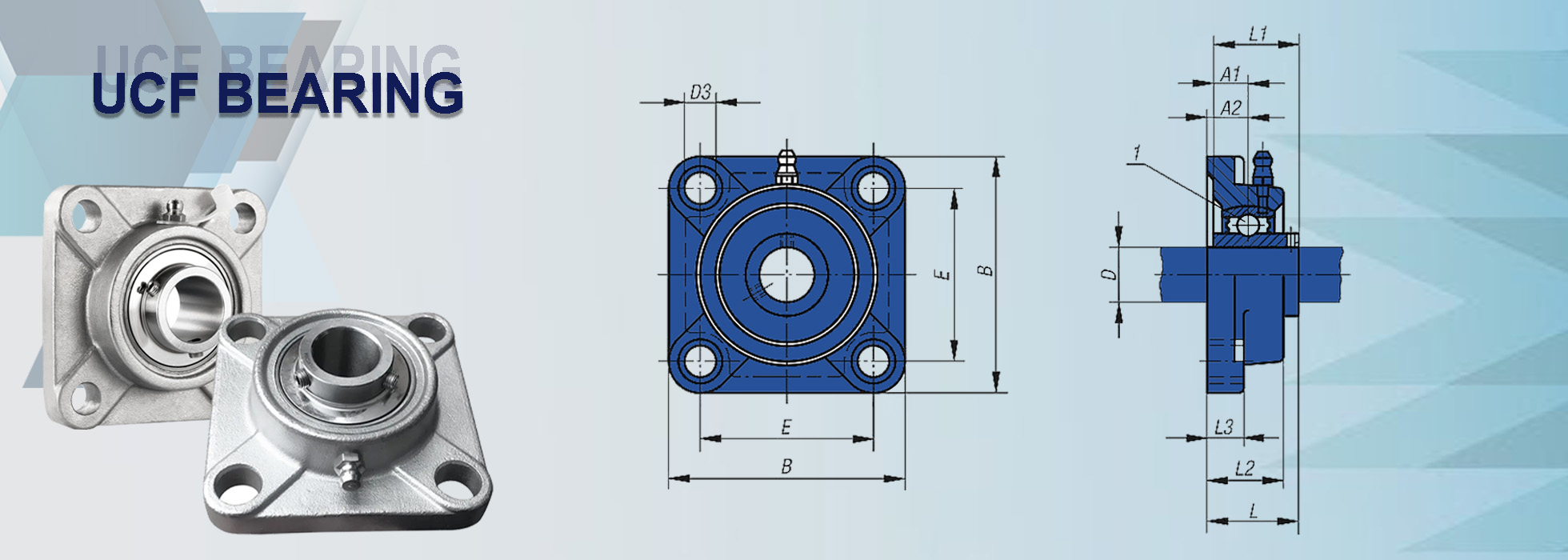

Unit No.	Dimensions (mm)
Unit No.	d(in)	d(mm.)	B	E	A2	L3	L	L1	Blot Size	Brand
SSUCF201 SSUCF201-8	1/2	12	86	64	15	11	25.5	33.3	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF202 SSUCF202-10	5/8	15	86	64	15	11	25.5	33.3	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF203 SSUCF203-11	11/16	17	86	64	15	11	25.5	33.3	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF204 SSUCF204-12	3/4	20	86	64	15	11	25.5	33.3	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF205 SSUCF205-14 SSUCF205-15 SSUCF205-16	7/8 15-16	25	95	70	16	13	27	35.7	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF206 SSUCF206-18 SSUCF206-19 SSUCF206-20	1-1/8 1-3/16 1-1/4	30	108	83	18	13	31	40.2	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCF207 SSUCF207-20 SSUCF207-21 SSUCF207-22 SSUCF207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	117	92	19	15	34	44.4	M12	LDK	UBC	ECONOMY SOLUTIONS
SSUCF208 SSUCF208-24 SSUCF208-25	1-1/2 1-9/16	40	130	102	21	15	36	51.2	M12	LDK	UBC	ECONOMY SOLUTIONS
SSUCF209 SSUCF209-26 SSUCF209-27 SSUCF209-28	1-5/8 1-11/16 1-3/4	45	137	105	22	16	38	52.2	M14	LDK	UBC	ECONOMY SOLUTIONS
SSUCF210 SSUCF210-30 SSUCF210-31	1-7/8 1-15/16	50	143	111	22	16	40	54.6	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF211 SSUCF211-32 SSUCF211-34 SSUCF211-25	2 2-1/8 2-3/16	55	162	130	25	18	43	58.4	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF212 SSUCF212-36 SSUCF212-38 SSUCF212-39	2-1/4 2-3/8 2-7/16	60	175	143	29	18	48	68.7	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF213 SSUCF213-40	2-1/2	65	187	149	30	22	50	69.7	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF214 SSUCF214-44	2-3/4	70	193	152	31	22	54	75.4	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF215 SSUCF215-47 SSUCF215-48	2-15/16 3	75	200	159	34	22	56	78.5	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCF216	-	80	208	165	34	22	57	83.3	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCF217 SSUCF217-52	3-1/4	85	220	175	36	24	63	87.6	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCF218 SSUCF218-56	3-1/2	90	235	187	40	25	68	96.3	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCF220 SSUCF220-64	4	100	265	210	44	25	70	110	M22	LDK	UBC	ECONOMY SOLUTIONS

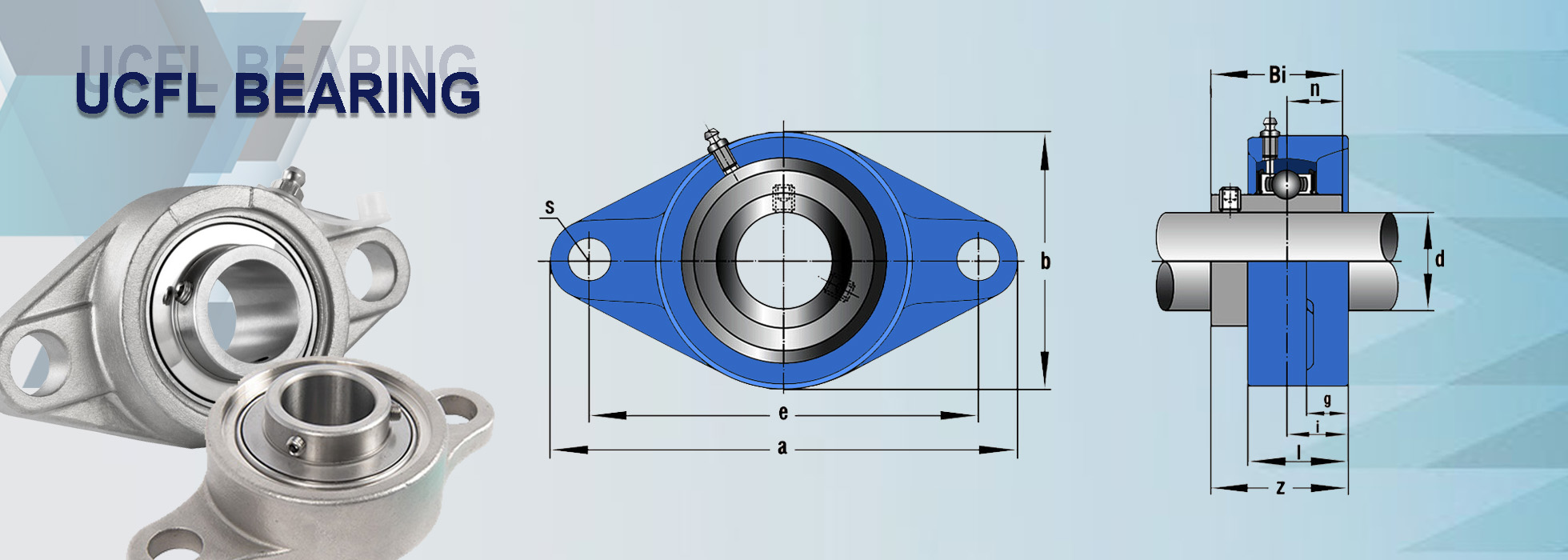

Unit No.	Dimensions (mm)
Unit No.	d(in)	d(mm.)	a	e	d	n	i	z	Bi	s	Blot Size	Brand
SSUCFL201 SSUCFL201-8	1/2	12	113	90	60	15	11	25.5	33.3	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL202 SSUCFL202-10	5/8	15	113	90	60	15	11	25.5	33.3	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL203 SSUCFL203-11	11/16	17	113	90	60	15	11	25.5	33.3	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL204 SSUCFL204-12	3/4	20	113	90	60	15	11	25.5	33.3	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL205 SSUCFL205-14 SSUCFL205-15 SSUCFL205-16	7/8 15/16 1	25	130	99	68	16	13	27	35.7	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL206 SSUCFL206-18 SSUCFL206-19 SSUCFL206-20	1-1/8 1-3/16 1-1/4	30	148	117	80	18	13	31	40.2	11.5	M10	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL207 SSUCFL207-20 SSUCFL207-21 SSUCFL207-22 SSUCFL207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	161	130	90	19	14	34	44.4	14	M12	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL208 SSUCFL208-24 SSUCFL208-25	1-1/2 1-9/16	40	175	144	100	21	14	36	51.2	14	M12	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL209 SSUCFL209-26 SSUCFL209-27 SSUCFL209-28	1-5/8 1-11/16 1-3/4	45	188	148	108	22	16	38	52.2	18	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL210 SSUCFL210-30 SSUCFL210-31 SSUCFL210-32	1-7/8 1-15/16 2	50	197	157	115	22	16	40	54.6	18	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL211 SSUCFL211-32 SSUCFL211-34 SSUCFL211-35	2 2-1/8 2-3/16	55	224	184	130	25	18	43	58.4	18	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL212 SSUCFL212-36 SSUCFL212-38 SSUCFL212-39	2-1/4 2-3/8 2-7/16	60	250	202	140	29	18	48	68.7	18	M16	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL213 SSUCFL213-40	2-1/2	65	258	210	155	30	20	50	69.7	23	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL214 SSUCFL214-44	2-3/4	70	265	216	160	31	20	54	75.4	23	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL215 SSUCFL215-47 SSUCFL215-48	2-18/16 3	75	275	225	164	34	22	55	78.5	23	M20	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL216	-	80	290	233	180	34	22	58	83.3	25	M22	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL217 SSUCFL217-52	3-1/4	85	305	248	190	36	22	63	87.6	25	M22	LDK	UBC	ECONOMY SOLUTIONS
SSUCFL218 SSUCFL218-56	3-1/2	90	320	265	205	40	23	68	96.3	25	M22	LDK	UBC	ECONOMY SOLUTIONS

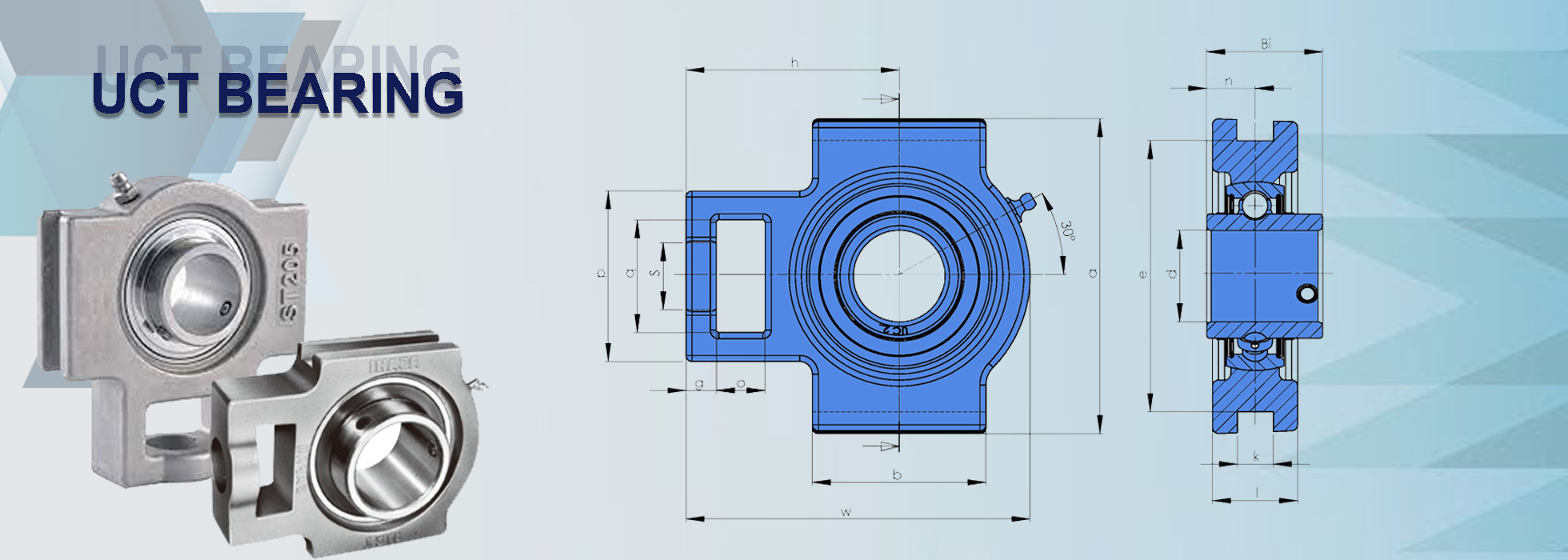

Unit No.	Dimensions (mm)
Unit No.	d	o	g	p	q	S	b	k	e	a	w	l	h	Bi	n	Brand
SSUCT201	12	16	10	51	32	19	51	12	76	89	94	21	61	31	12.7	LDK	UBC	ECONOMY SOLUTIONS
SSUCT202	15	16	10	51	32	19	51	12	76	89	94	21	61	31	12.7	LDK	UBC	ECONOMY SOLUTIONS
SSUCT203	17	16	10	51	32	19	51	12	76	89	94	21	61	31	12.7	LDK	UBC	ECONOMY SOLUTIONS
SSUCT204	20	16	10	51	32	19	51	12	76	89	94	21	61	31	12.7	LDK	UBC	ECONOMY SOLUTIONS
SSUCT205	25	16	10	51	32	19	51	12	76	89	94	21	61	34.1	14.3	LDK	UBC	ECONOMY SOLUTIONS
SSUCT206	30	16	10	56	37	22	57	12	89	102	113	28	70	38.1	15.9	LDK	UBC	ECONOMY SOLUTIONS
SSUCT207	35	16	13	64	37	22	64	12	89	102	129	30	78	42.9	17.5	LDK	UBC	ECONOMY SOLUTIONS
SSUCT208	40	19	16	83	49	29	83	16	102	114	144	33	89	49.2	19	LDK	UBC	ECONOMY SOLUTIONS
SSUCT209	45	19	16	83	49	29	83	16	102	117	144	35	87	49.2	19	LDK	UBC	ECONOMY SOLUTIONS
SSUCT210	50	19	16	83	49	29	86	16	102	117	149	37	90	51.6	19	LDK	UBC	ECONOMY SOLUTIONS
SSUCT211	55	25	19	102	64	35	95	22	130	146	171	38	106	55.6	22.2	LDK	UBC	ECONOMY SOLUTIONS
SSUCT212	60	32	19	102	64	35	102	22	130	146	194	42	119	65.1	25.4	LDK	UBC	ECONOMY SOLUTIONS
SSUCT213	65	32	21	111	70	41	121	26	151	167	224	44	137	65.1	25.4	LDK	UBC	ECONOMY SOLUTIONS
SSUCT214	70	32	21	111	70	41	121	26	151	167	224	46	137	74.6	30.2	LDK	UBC	ECONOMY SOLUTIONS
SSUCT215	75	32	21	111	70	41	121	26	151	167	232	48	140	77.8	33.3	LDK	UBC	ECONOMY SOLUTIONS
SSUCT216	80	32	21	111	70	41	121	26	165	184	235	51	140	82.6	33.3	LDK	UBC	ECONOMY SOLUTIONS
SSUCT217	85	38	29	124	73	48	157	30	173	198	260	54	162	85.7	34.1	LDK	UBC	ECONOMY SOLUTIONS

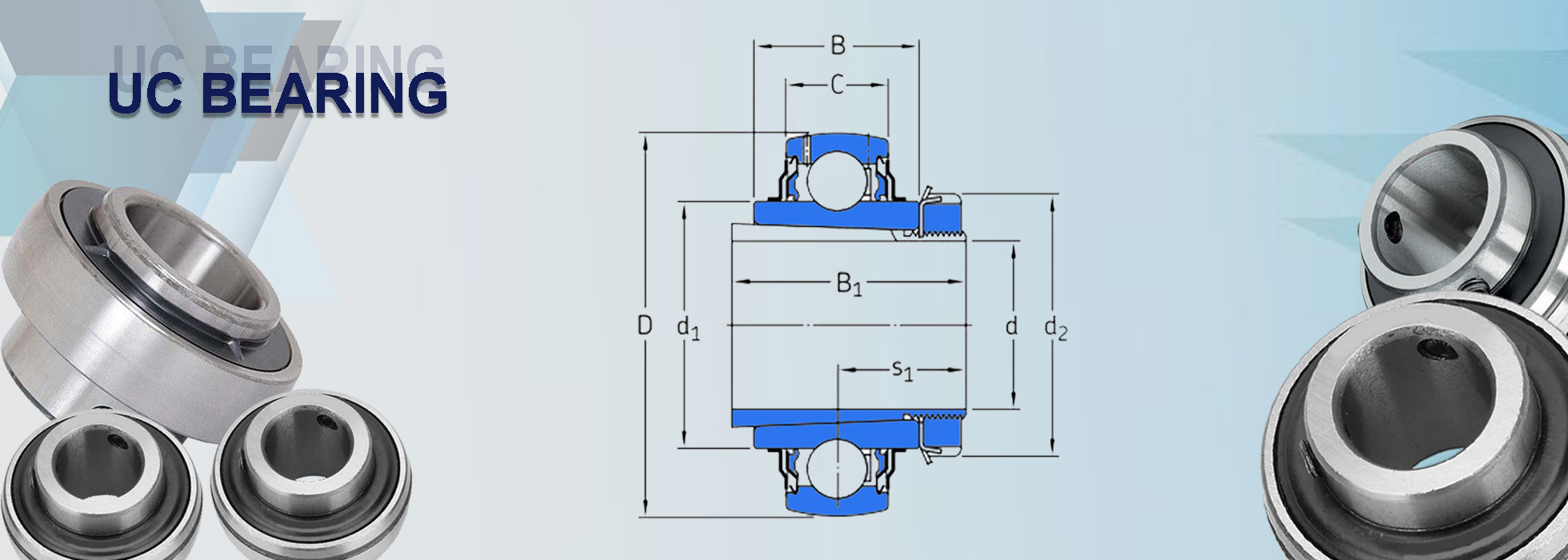

Unit No.	Dimensions (mm)
Unit No.	d(in)	d(mm.)	D	B	C	S1	Brand
SUC201 SUC201-8	1/2	12	47	31	17	18.3	LDK	UBC	ECONOMY SOLUTIONS
SUC02 SUC202-9 SUC202-10	9/16 5/8	15	47	31	17	18.3	LDK	UBC	ECONOMY SOLUTIONS
SUC203 SUC203-11	11/16	17	47	31	17	18.3	LDK	UBC	ECONOMY SOLUTIONS
SUC204 SUC204-12	3/4	20	47	31	17	18.3	LDK	UBC	ECONOMY SOLUTIONS
SUC205 SUC205-13 SUC205-14 SUC205-15 SUC205-16	13/16 7/8 15/16 1	25	52	34.1	17	19.8	LDK	UBC	ECONOMY SOLUTIONS
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20	1-1/16 1-1/8 1-3/16 1-1/4	30	62	38.1	19	22.2	LDK	UBC	ECONOMY SOLUTIONS
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	72	42.9	20	25.4	LDK	UBC	ECONOMY SOLUTIONS
SUC208 SUC208-24 SUC208-25	1-1/2 1-9/16	40	80	49.2	21	30.2	LDK	UBC	ECONOMY SOLUTIONS
SUC209 SUC209-26 SUC209-27 SUC209-28	1-5/8 1-11/16 1-3/4	45	85	49.2	22	30.2	LDK	UBC	ECONOMY SOLUTIONS
SUC210 SUC210-30 SUC210-31 SUC210-32	1-7/8 1-15/16 2	50	90	51.6	24	32.6	LDK	UBC	ECONOMY SOLUTIONS
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35	2 2-1/16 2-1/8 2-3/16	55	100	55.6	25	33.4	LDK	UBC	ECONOMY SOLUTIONS
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39	2-1/4 2-5/16 2-3/8 2-7/16	60	110	65.1	27	39.7	LDK	UBC	ECONOMY SOLUTIONS
SUC213 SUC213-39 SUC213-40	2-7/16 2-1/2	65	120	65.1	28	39.7	LDK	UBC	ECONOMY SOLUTIONS
SUC214 SUC214-43 SUC214-44	2-11/16 2-3/4	70	125	74.6	29	44.4	LDK	UBC	ECONOMY SOLUTIONS
SUC215 SUC215-47 SUC21548	2-15/16 3	75	130	77.8	30	44.5	LDK	UBC	ECONOMY SOLUTIONS
SUC216	-	80	140	82.6	33	49.3	LDK	UBC	ECONOMY SOLUTIONS
SUC217 SUC217-52	3-1/4	85	150	85.7	35	51.6	LDK	UBC	ECONOMY SOLUTIONS
SUC218 SUC218-56	3-1/2	90	160	96	37	56.3	LDK	UBC	ECONOMY SOLUTIONS
