COUPLING

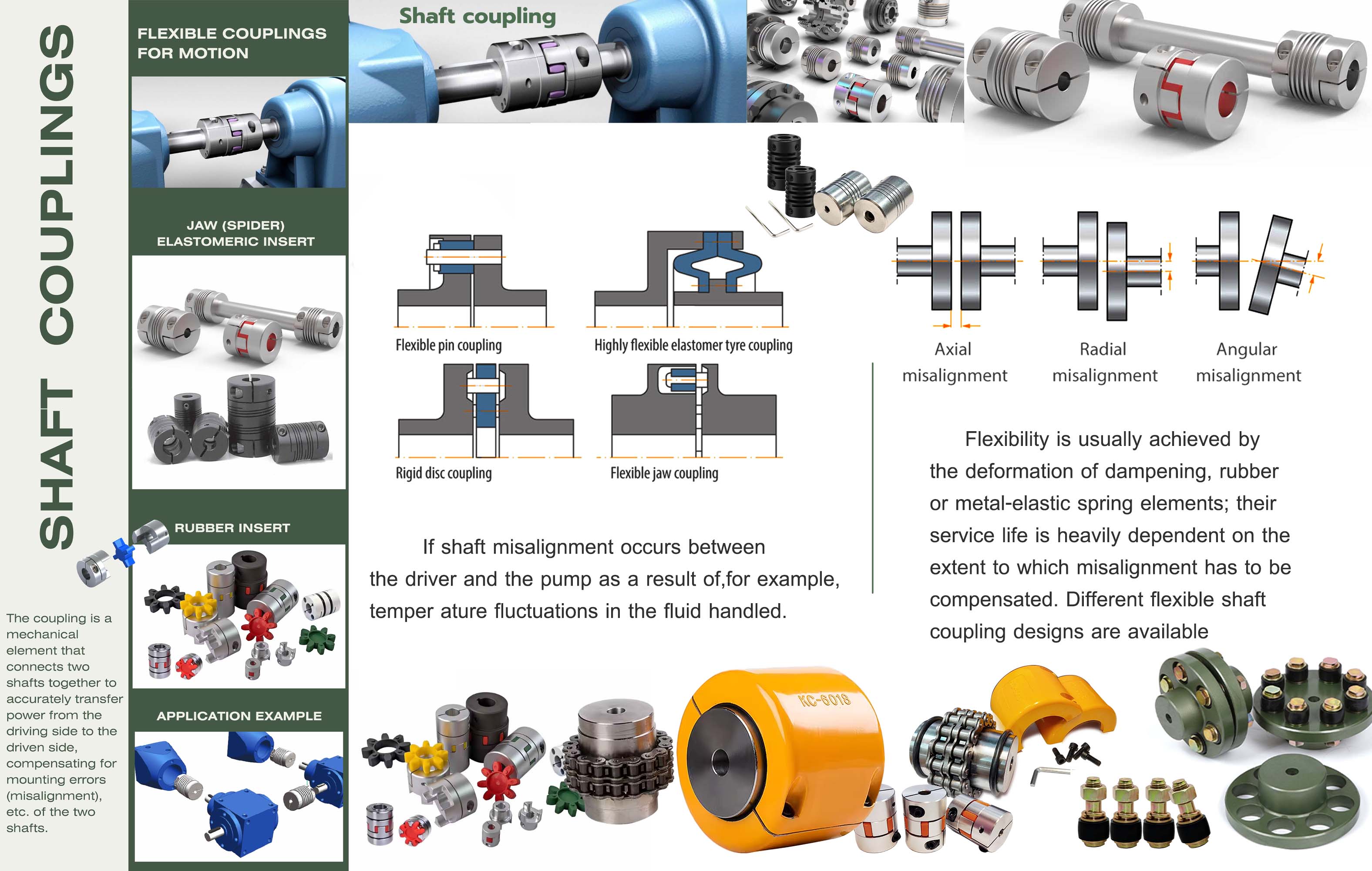

Shaft couplings are mechanical devices used to connect rotating shafts together and allow misalignment between them to a degree depends on many factors like speed, torque, application and type of the coupling itself.

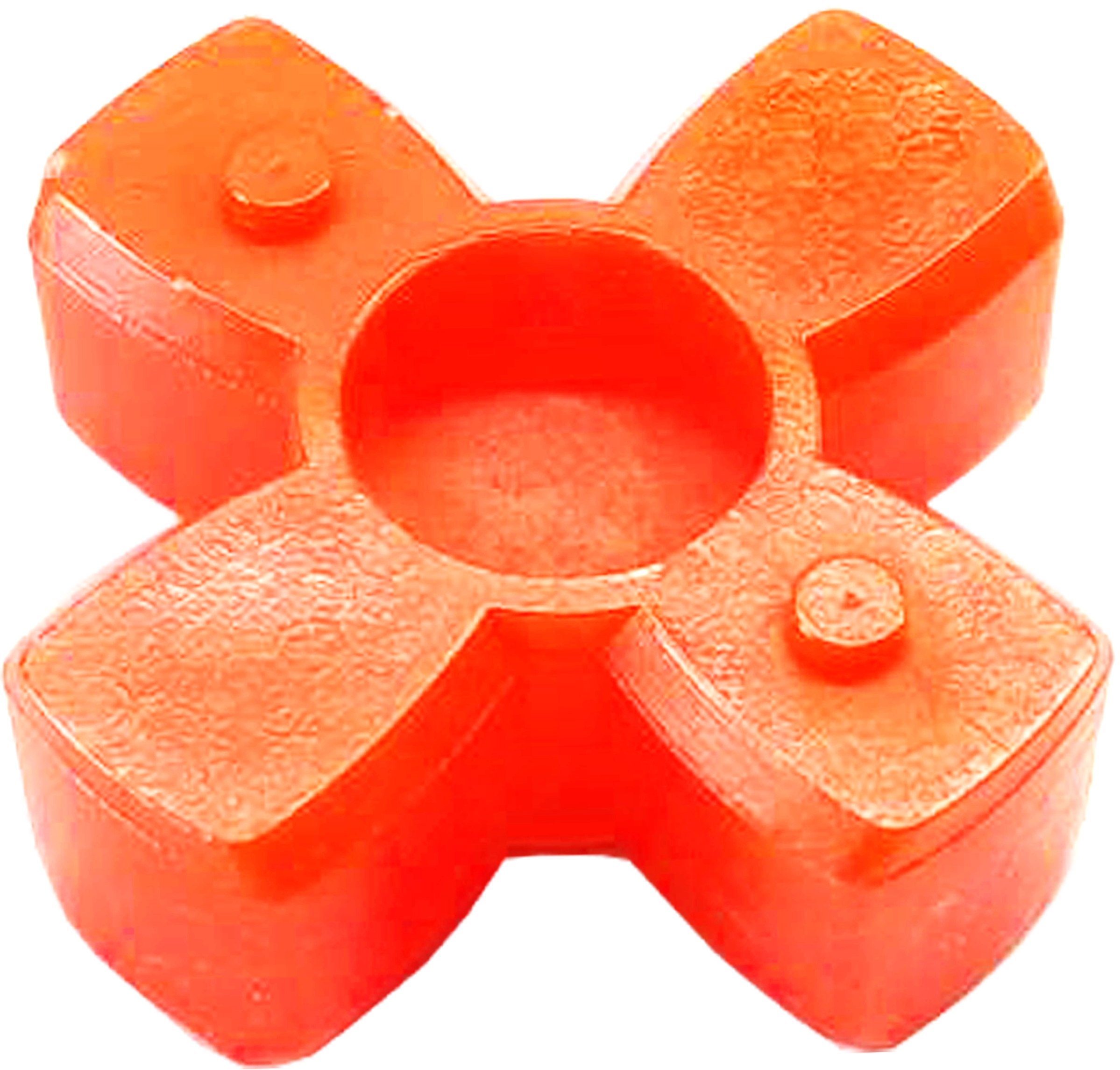

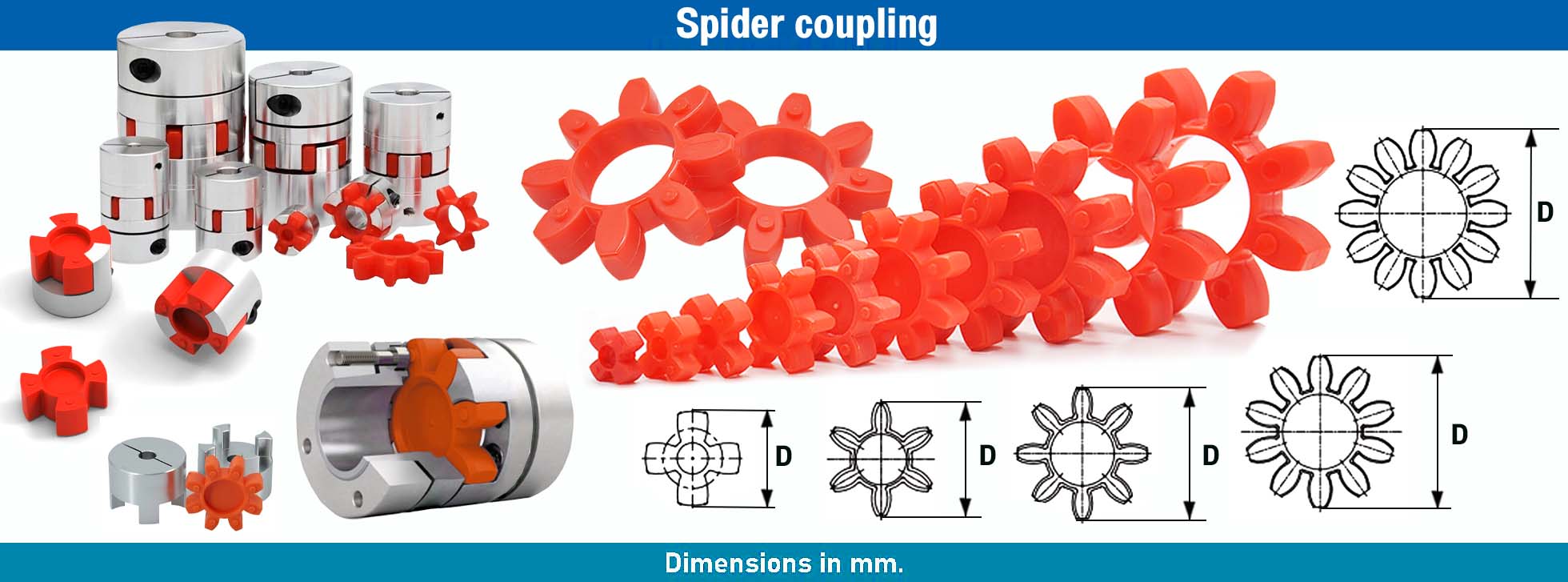

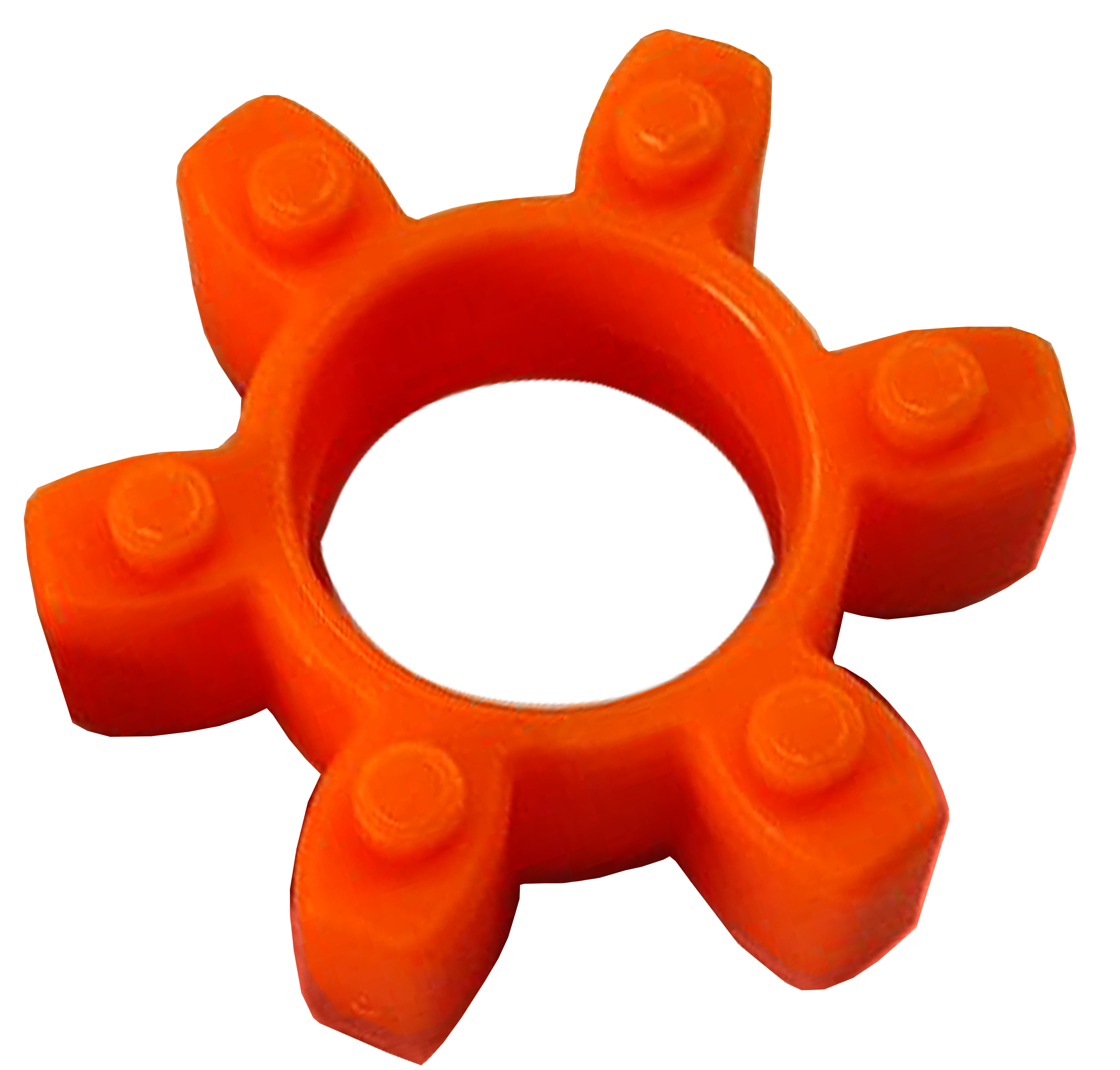

D20	D25	D30	D30	D35	D40	D40

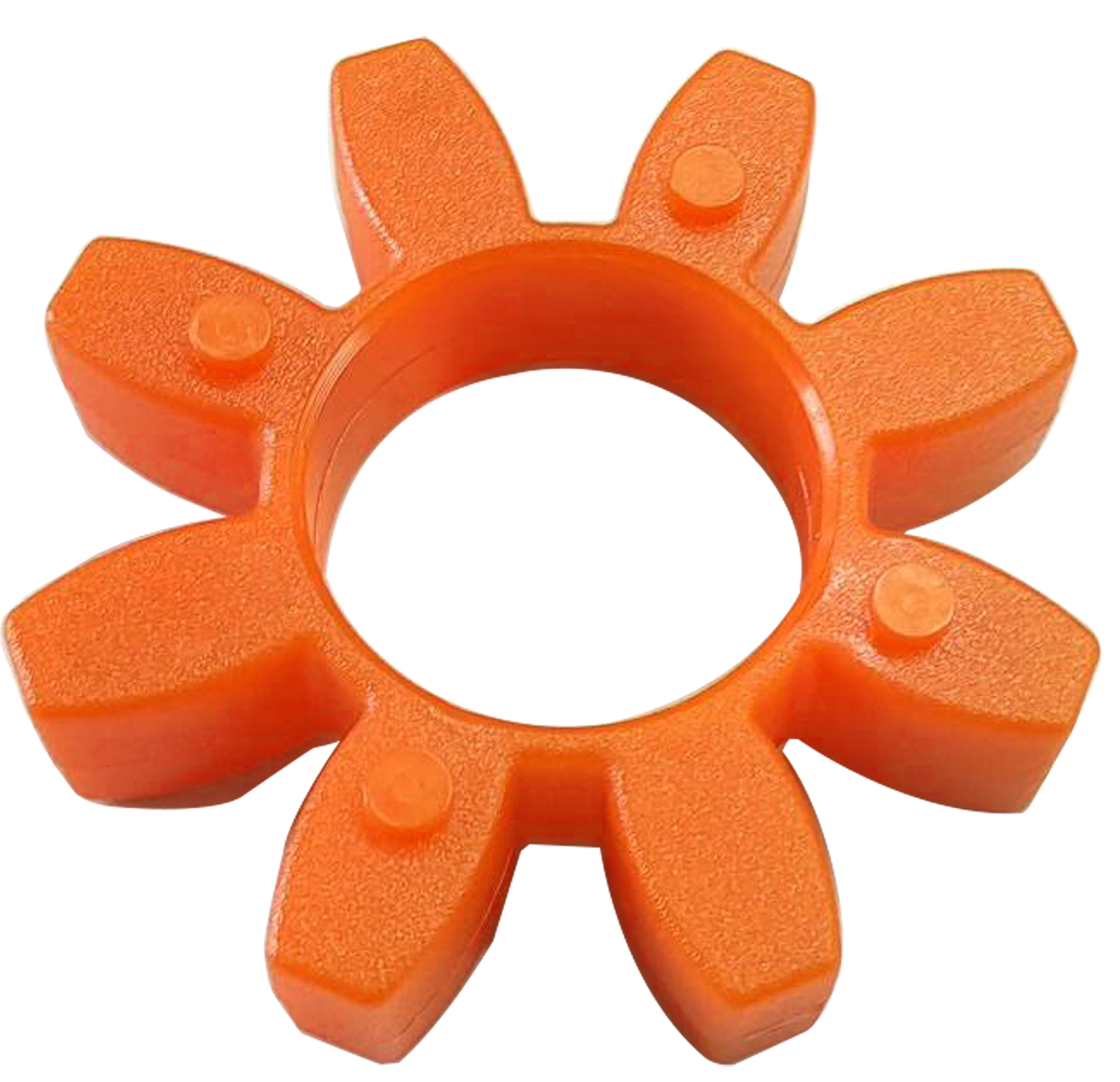

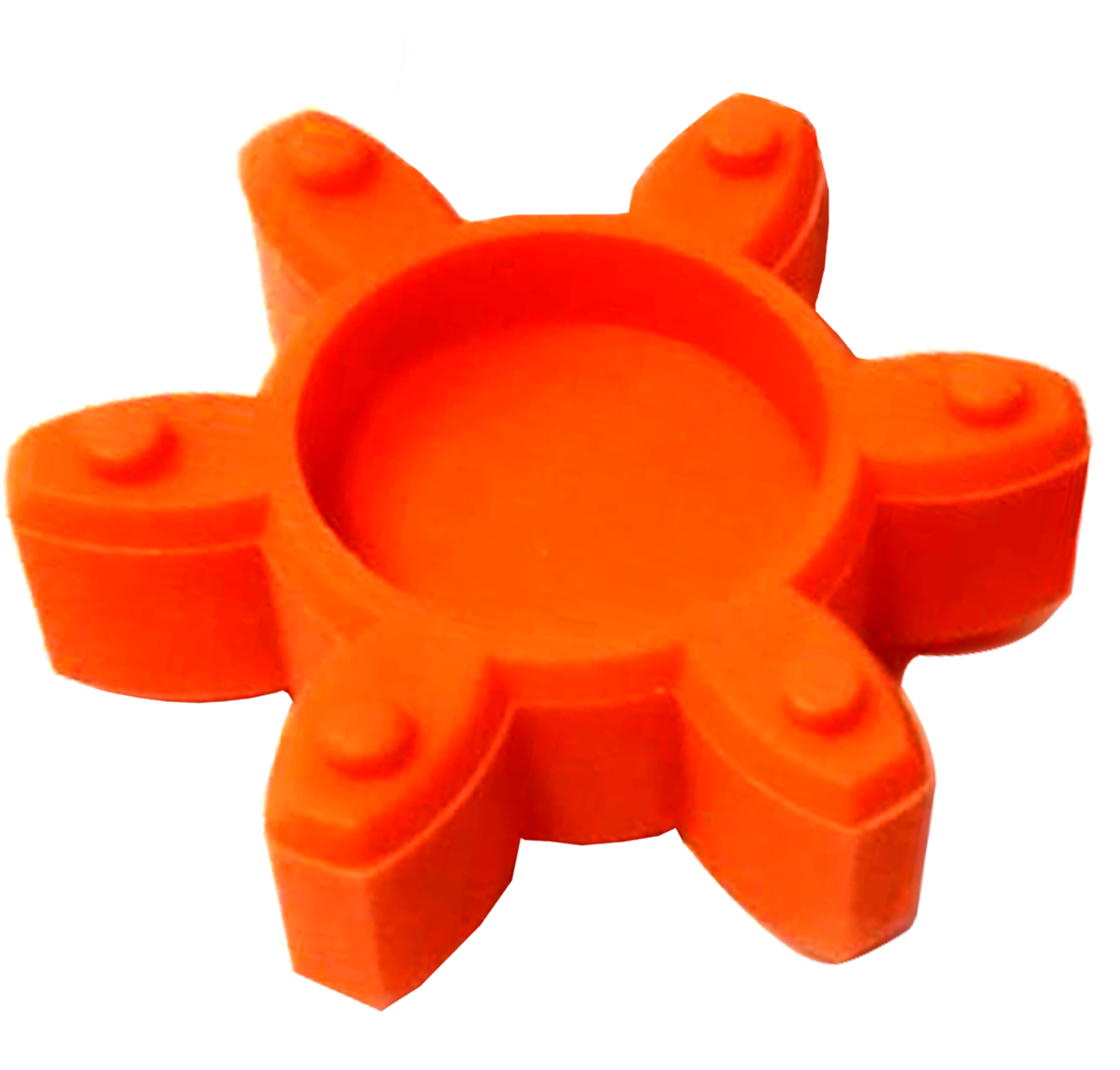

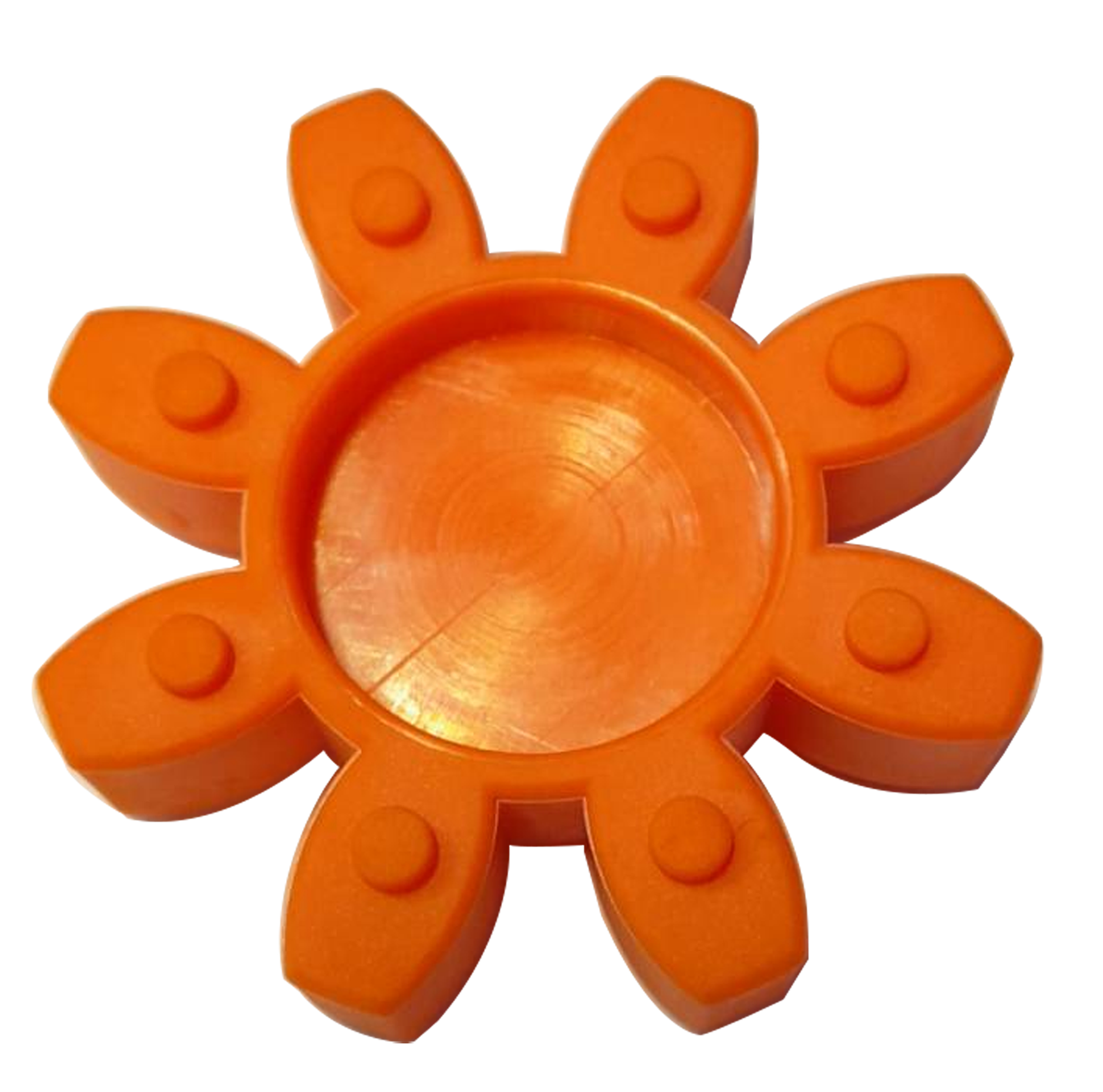

D45	D45	D55	D55	D65	D65	D80

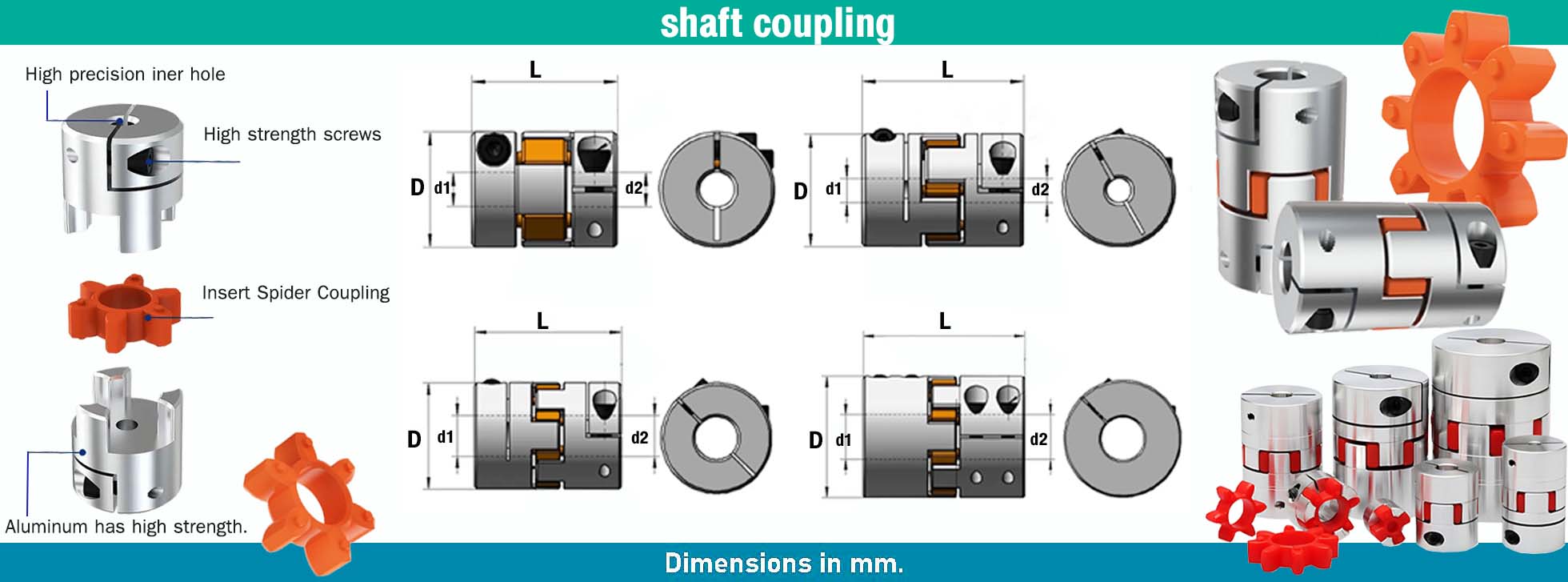

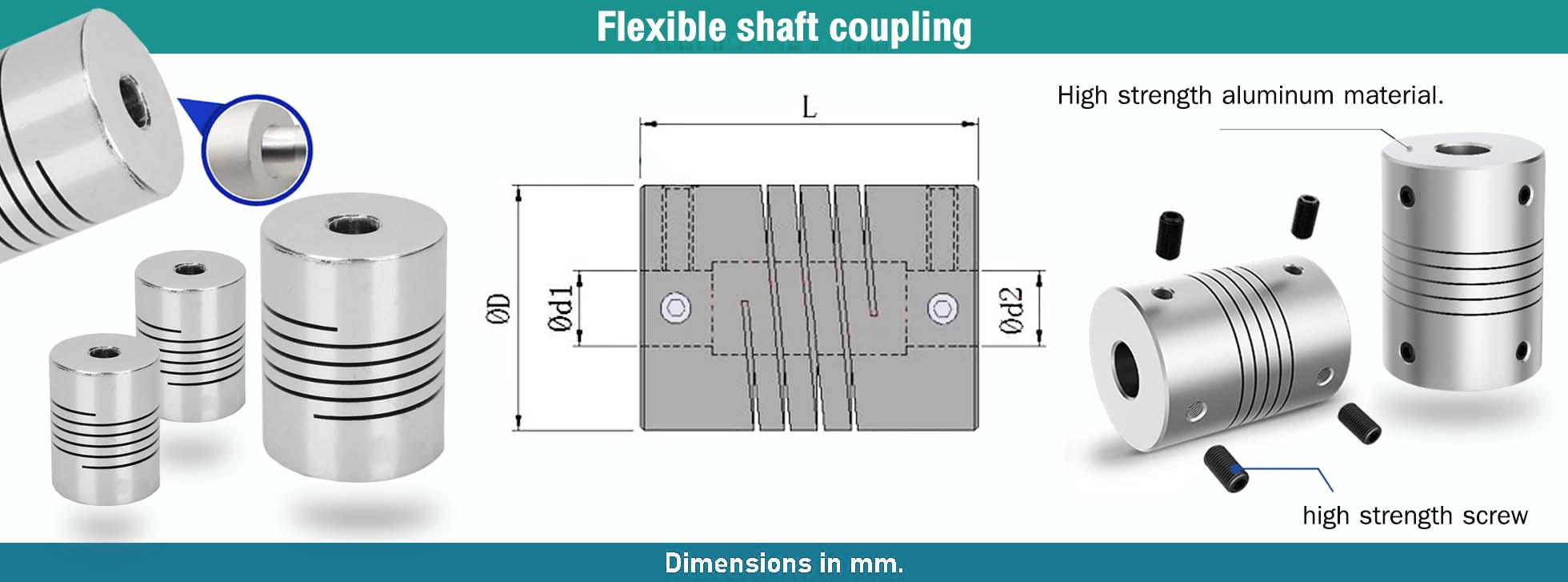

Model	D	L	d1-d2	Model	D	L	d1-d2
D19L25	19	25	3-3	D30L35	30	35	5-5
	19	25	3-4		30	35	5-6
	19	25	3-5		30	35	5-8
	19	25	3-6		30	35	6-6
	19	25	4-4		30	35	6-8
	19	25	4-5		30	35	6-10
	19	25	4-6		30	35	6-12
	19	25	4-8		30	35	8-8
	19	25	5-5		30	35	8-10
	19	25	5-6		30	35	8-12
	19	25	5-8		30	35	8-14
	19	25	5-10		30	35	10-10
	19	25	6-6		30	35	10-12
	19	25	6-8		30	35	10-14
	19	25	6-10		30	35	12-12
	19	25	7-7		30	35	12-14
	19	25	8-8		30	35	14-14
	19	25	8-10
	19	25	10-10

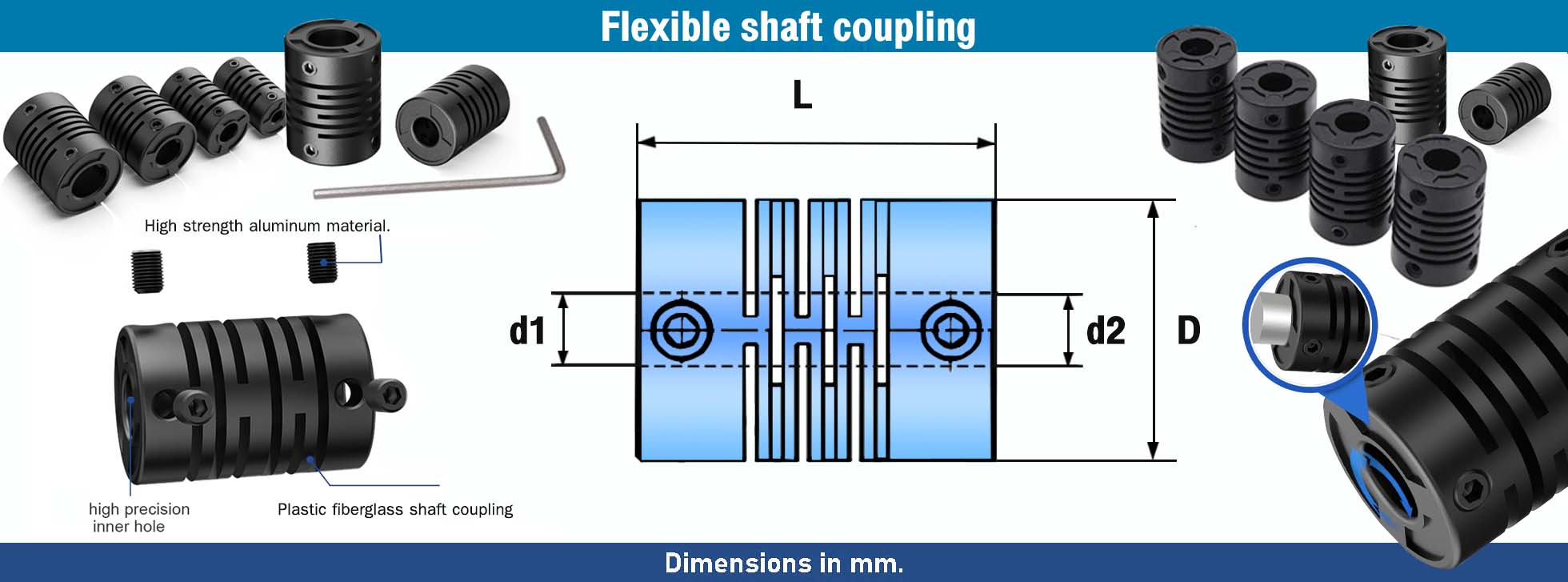

Model	D	L	d1-d2
D13L21	13	21	4-4
D15L22	15	22	5-5
D15L22	15	22	6-6

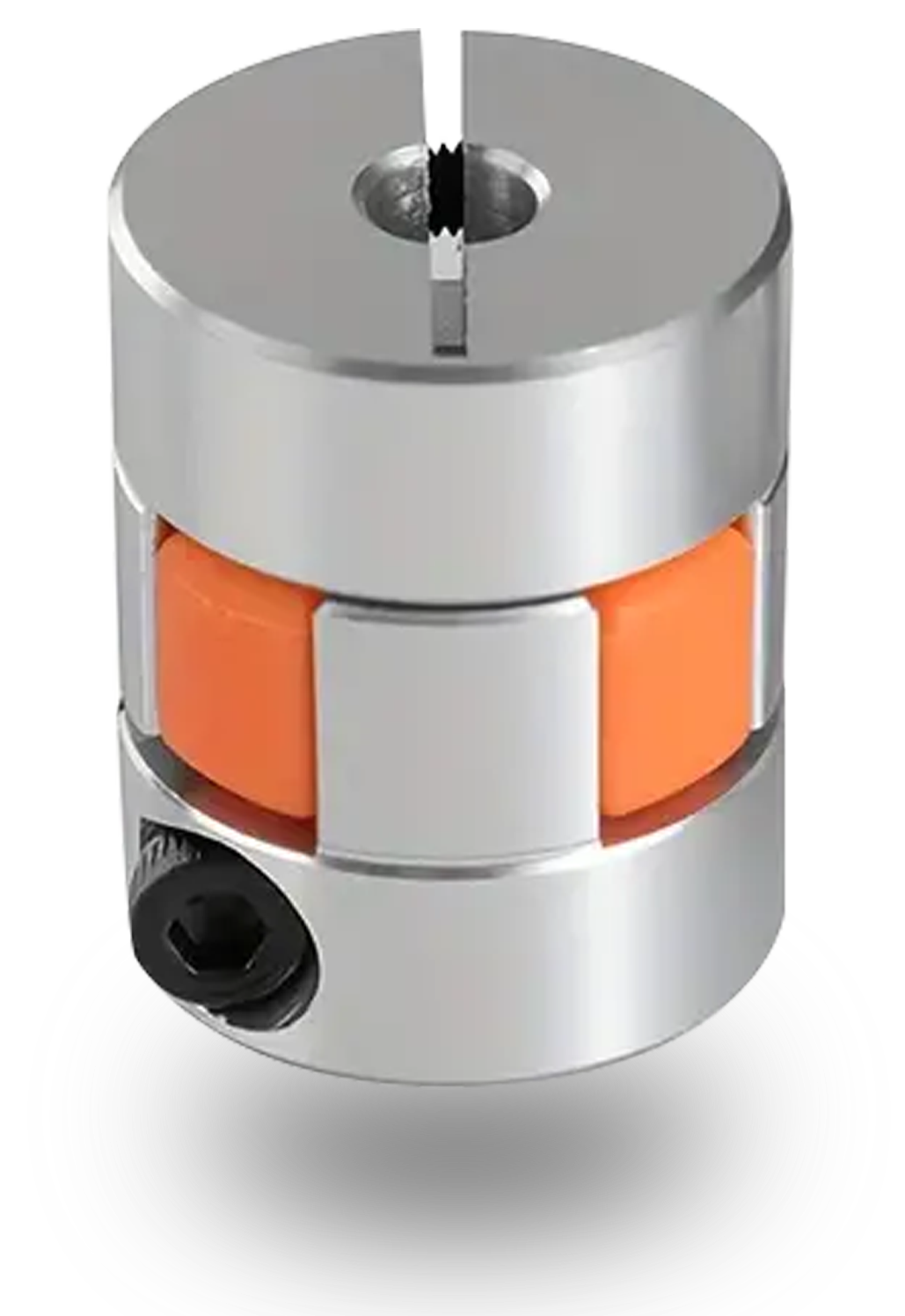

Model D20L25	D	L	d1-d2
	20	25	3-3
	20	25	4-4
	20	25	4-6
	20	25	4-8
	20	25	4-10
	20	25	5-5
	20	25	5-6
	20	25	5-8
	20	25	5-10
	20	25	6-6
	20	25	6-8
	20	25	6-10
	20	25	8-8
	20	25	8-10
	20	25	10-10
Model D25L30	D	L	d1-d2
	25	30	5-5
	25	30	5-8
	25	30	6-6
	25	30	6-8
	25	30	8-8
	25	30	8-10
	25	30	10-10
	25	30	12-12

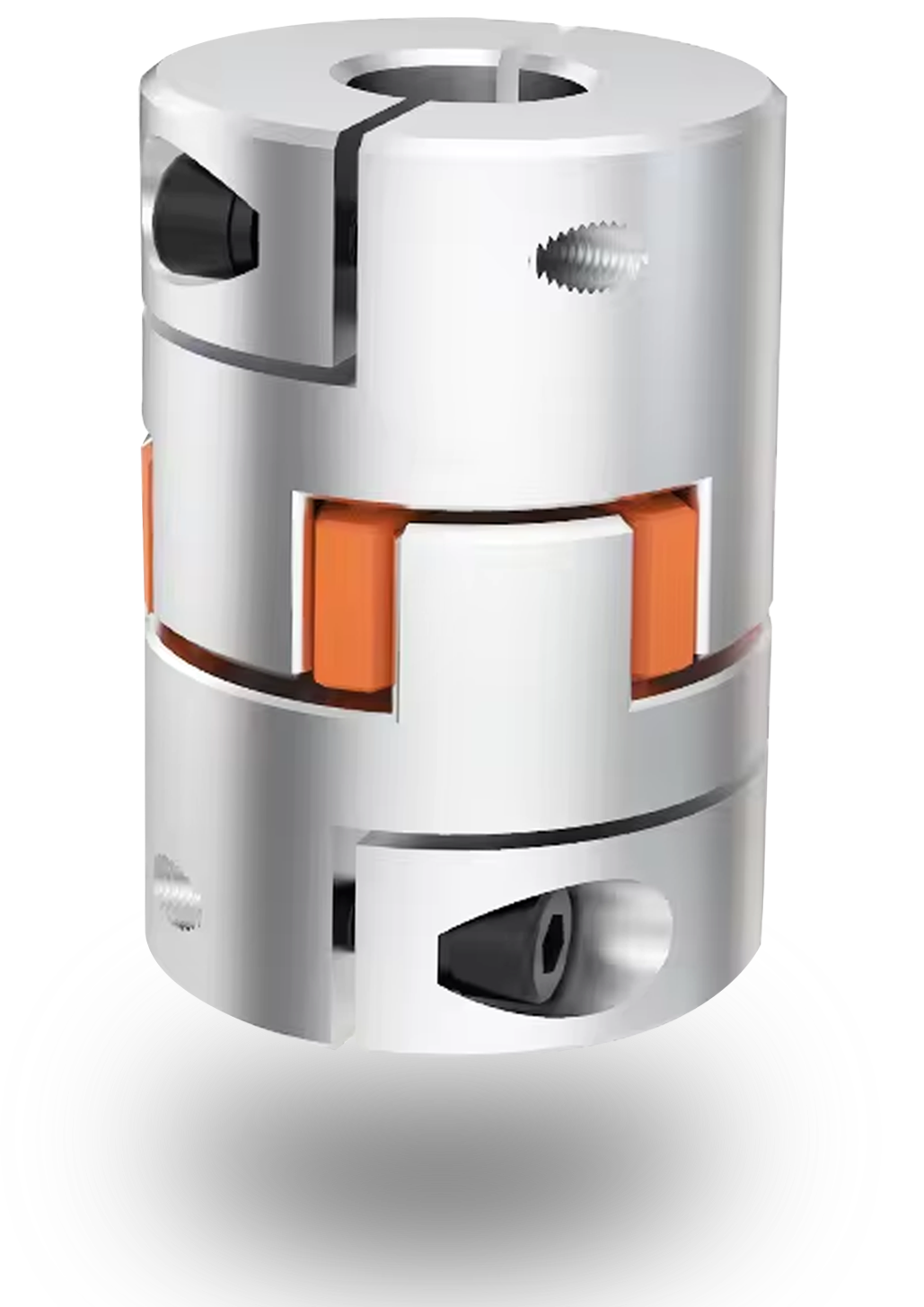

Model D30L35	D	L	d1-d2
	30	35	5-5
	30	35	5-6
	30	35	5-8
	30	35	6-6
	30	35	6-8
	30	35	6-10
	30	35	8-8
	30	35	8-10
	30	35	10-10
	30	35	10-12
	30	35	10-14
	30	35	12-12
	30	35	12-14
Model D30L40	D	L	d1-d2
	30	40	6-6
	30	40	6-8
	30	40	6-10
	30	40	6-12
	30	40	8-8
	30	40	8-10
	30	40	8-12
	30	40	8-14
	30	40	10-10
	30	40	10-12
	30	40	12-12
	30	40	12-14
	30	40	14-14
Model D40L66	D	L	d1-d2
	40	66	8-8
	40	66	8-10
	40	66	10-10
	40	66	10-12
	40	66	10-14
	40	66	10-16
	40	66	10-18
	40	66	10-20
	40	66	10-22
	40	66	12-12
	40	66	12-14
	40	66	12-16
	40	66	12-18
	40	66	12-20
	40	66	12-22
	40	66	14-14
	40	66	14-16
	40	66	14-18
	40	66	14-20
	40	66	14-22
	40	66	15-15
	40	66	16-16
	40	66	16-18
	40	66	16-20
	40	66	16-22
	40	66	18-18
	40	66	18-20
	40	66	18-22
	40	66	20-20
	40	66	20-22
	40	66	22-22

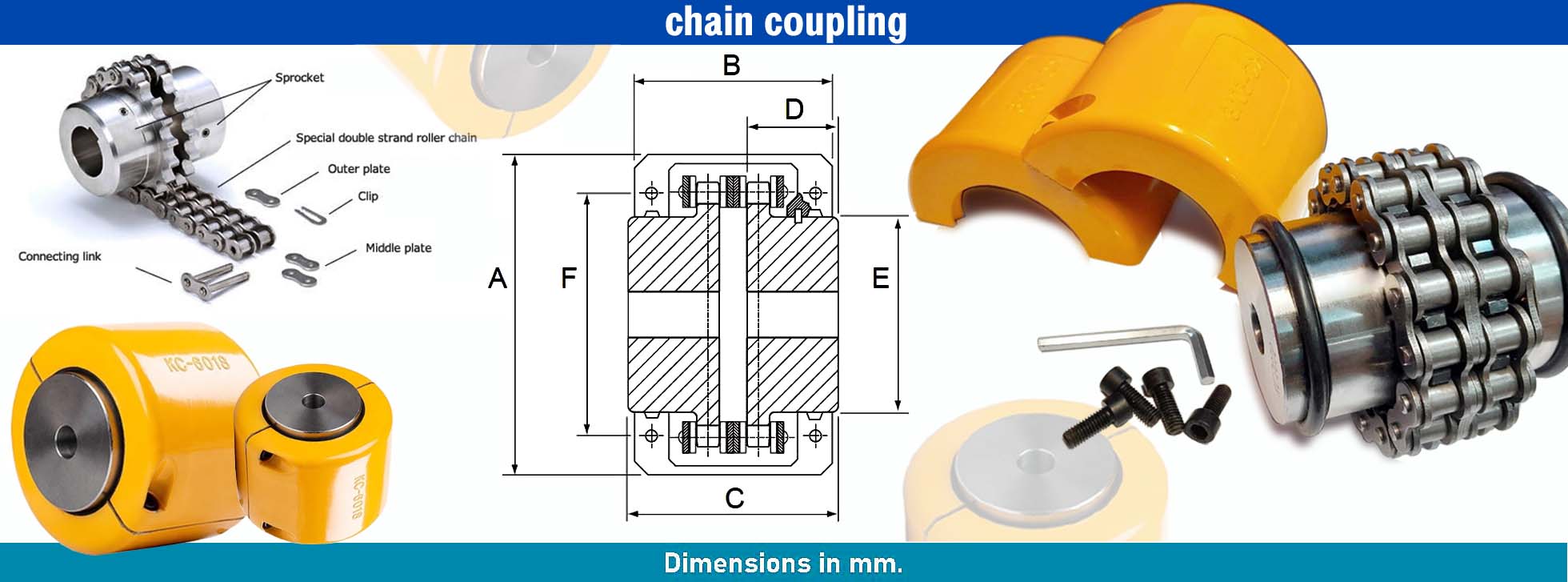

Coupling Size	Chain size	Bore		Casing O.D	Casing Width	Assemmbled Width	Hub Length	Hub Diameter	Bolt Centers	Torque Ratings	Weight
Coupling Size	Chain size	Min	Max	A	B	C	D	E	F	Nm	kg.
3012	35-2	12	15	70	62	65	28	25	57	150	0.5
4012	40-2	12	20	78	72	78	36	31	61	210	1.0
4014	40-2	12	25	85	75	80	36	43	72	300	1.4
4016	40-2	14	30	92	75	80	36	50	77	380	1.8
5014	50-2	14	35	101	84	100	45	53	82	550	2.5
5016	50-2	16	40	111	85	100	45	60	92	725	3.2
5018	50-2	16	45	123	85	100	45	70	106	925	4.0
6018	60-2	20	55	144	106	122	54	85	122	1750	7.2
6020	60-2	20	70	160	108	123	54	98	132	2050	9.5
6022	60-2	25	75	168	116	123	54	110	145	2400	11.3
8018	80-2	30	75	190	128	140	67	110	160	3800	14.7
8020	80-2	30	85	211	138	144	67	120	184	4700	18.2
8022	80-2	35	95	226	138	155	67	140	196	5500	23.3
10020	100-2	40	110	280	155	176	79	160	250	8700	36.0
12018	120-2	40	120	305	180	198	89	170	280	13250	49.0
12022	120-2	40	150	355	180	218	99	210	335	17800	77.0

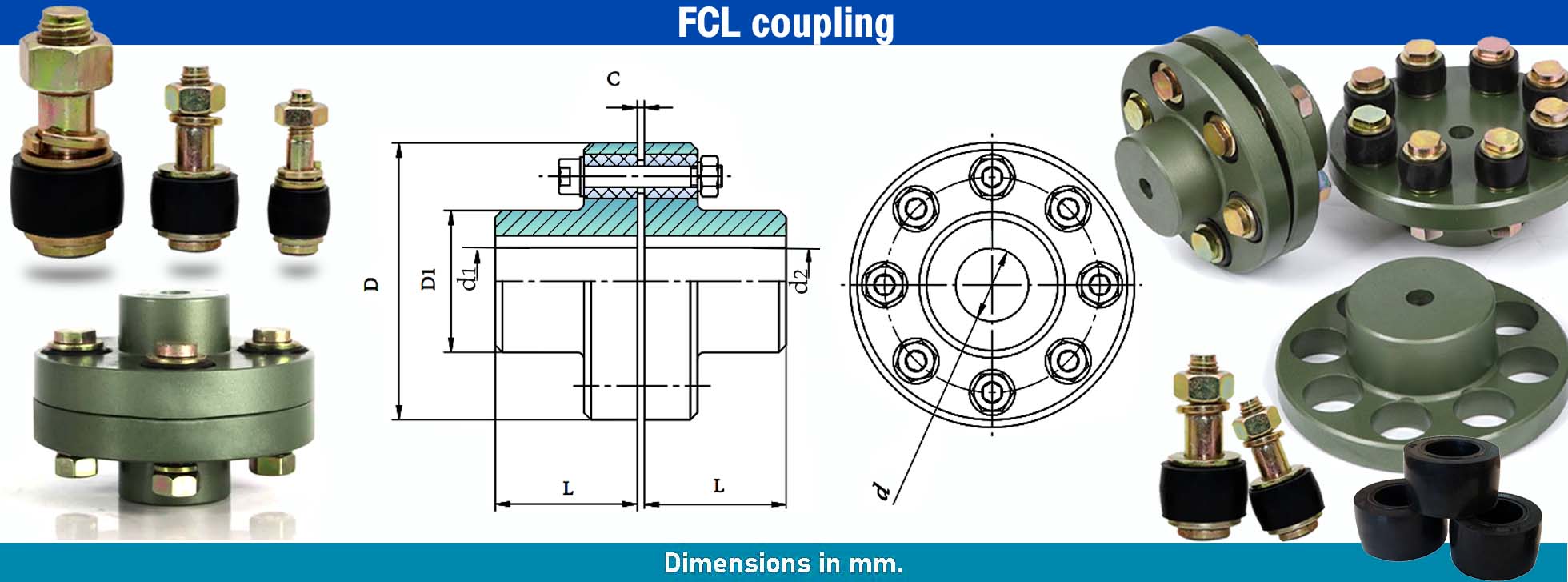

TYPE	Bolt Part สกรู+ยาง	Rubber ยาง	D	D1	d		L	C	Pin MxL	Number of pins	Max torque N.m	Max speed r/min	Kg.
TYPE	Bolt Part สกรู+ยาง	Rubber ยาง	D	D1	d1	d2	L	C	Pin MxL	Number of pins	Max torque N.m	Max speed r/min	Kg.
FCL90	F1	F1-G	90	35.5	20		28	5	M8x50	4	6	4000	1.7
FCL100	F2	F2-G	100	40	25		35.5	5	M10x56	4	12	4000	2.5
FCL112	F2	F2-G	112	45	28		40	5	M10x56	4	18	4000	3.0
FCL125	F3	F3-G	125	50	32	28	45	5	M12x64	4	27	4000	4.0
FCL140			140	63	38	35	50	5	M12x64	6	55	4000	5.6
FCL160			160	80	45		56	5	M12x64	8	118	4000	7.8
FCL180			180	90	50		63	5	M12x64	8	160	3500	10.5
FCL200	F4	F4-G	200	100	56		71	5	M20x85	8	250	3200	16.2
FCL224	F4	F4-G	224	112	63		80	5	M20x85	8	400	2850	21.6
FCL250	F5	F5-G	250	125	71		90	5	M24x110	8	616	2550	31.8
FCL280	F6	F6-G	280	140	80		100	5	M24x116	8	980	2300	44.0
FCL315	F6	F6-G	315	160	90		112	5	M24x116	10	1568	2050	58.0
FCL355	F7	F7-G	355	180	100		125	5	M30x150	8	2460	1800	89.5
FCL400			400	200	110		125	5	M30x150	10	3920	1600	113
FCL450			450	224	125		140	5	M30x150	12	6180	1400	145
FCL560			560	250	140		160	5	M30x150	14	9800	1150	229
FCL630			630	280	160		180	5	M30x150	18	15680	1000	296

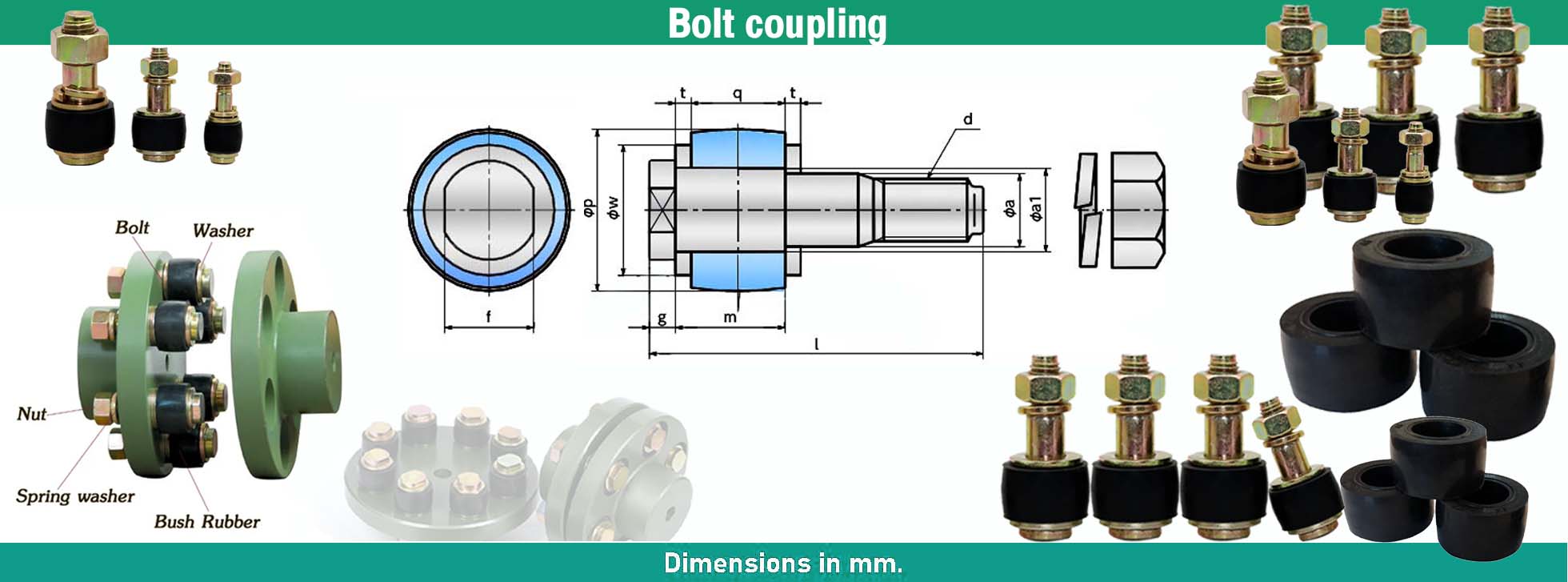

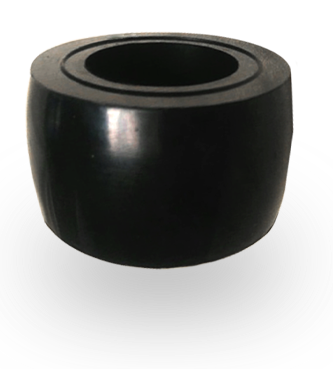

Part No. สกรู+ยาง	Bolt	Bubber เฉพราะยาง	Nomial axL	d	a1	a	f	g	m	L	w	t	p	q	ใช้คู่กับ
F1	M8x50	F1-G	8x50	M8	9	8	10	4	17	50	14	3	18	14	FCL90
F2	M10x56	F2-G	10x56	M10	12	10	13	4	19	56	18	3	22	16	FCL100 FCL112
F3	M12x64	F3-G	14x64	M12	16	14	17	5	21	64	25	3	31	18	FCL125 FCL140 FCL160 FCL180
F4	M20x85	F4-G	20x85	M20	22.4	20	24	5	26.4	85	32	4	40	22.4	FCL200 FCL224
F5	M24x100	F5-G	25x100	M24	28	25	30	6	32	100	40	4	50	28	FCL250
F6	M24x116	F6-G	28x116	M24	31.5	28	32	6	44	116	45	4	56	40	FCL280 FCL315
F7	M30x150	F7-G	35.5x150	M30	40	35.5	41	8	61	150	56	5	71	56	FCL355 FCL400 FCL450 FCL560 FCL630
